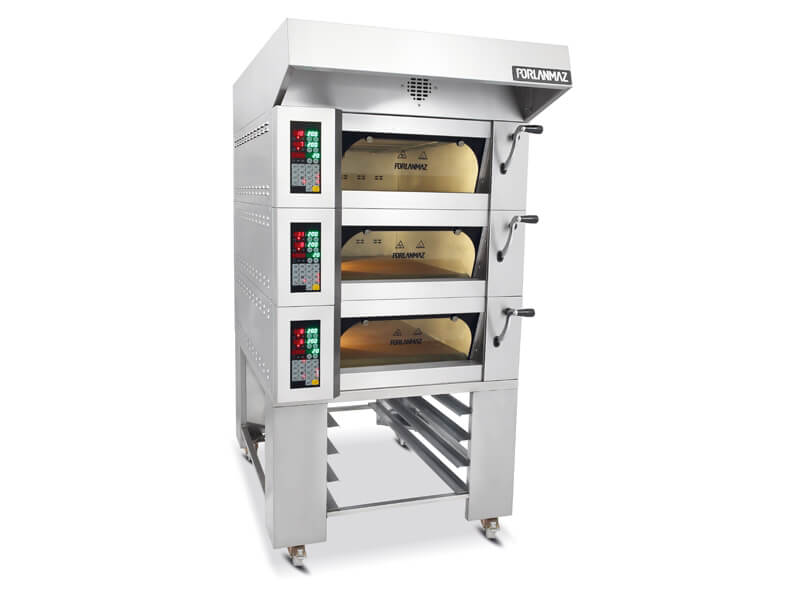

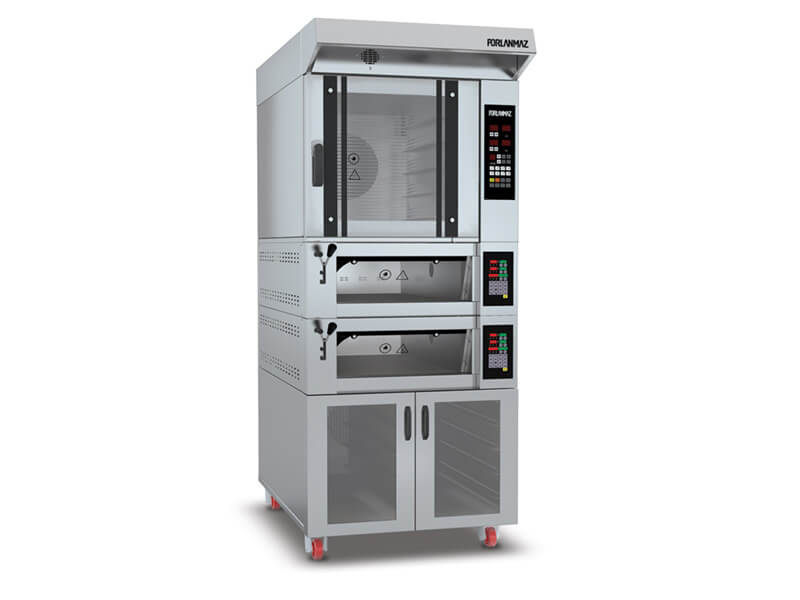

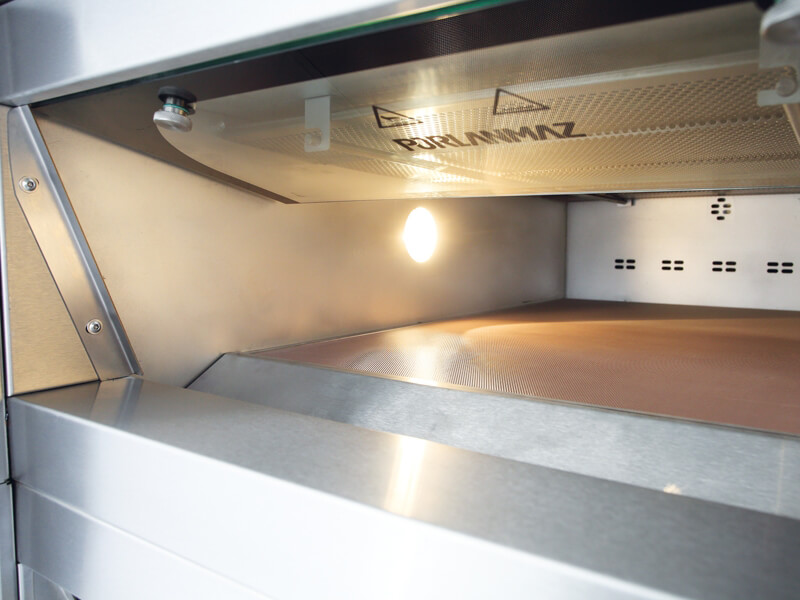

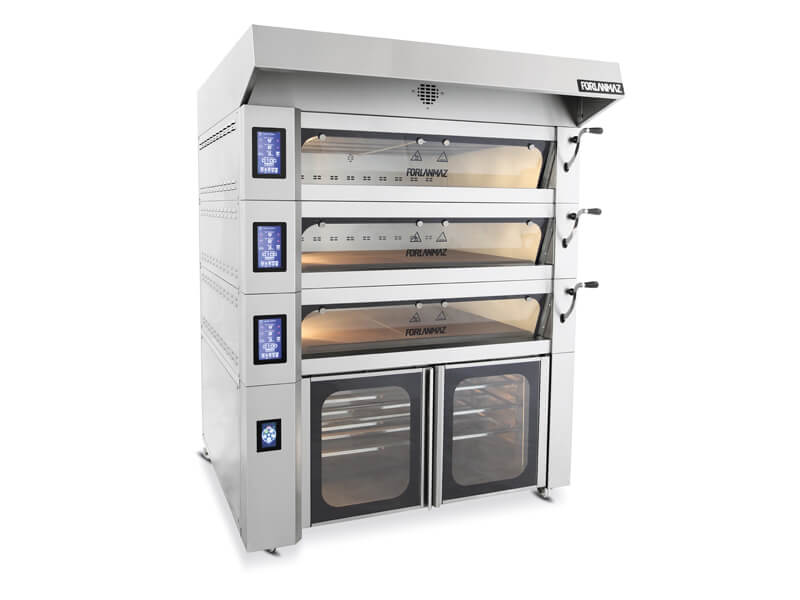

The major specification of mini deck oven (modular oven) is each deck can be operated independently. Temperature and the time of steam can be adjusted for each deck as per the request. Thus, it provides an opportunity to bake diff erent sort of products in each deck. For being fermented there is a fermentation cabinet and its temperature and humidity can be adjusted. It is used with single deck also modular and according to need it can be added extra deck, chimney hood and fermentation cabinet. It provides low energy consumption. It can be moved by means of its wheels. Optional stand is produced for the oven. It is produced with electricity.
| Model | Unit | PMKF 6 | PMKF 12 |
|---|---|---|---|
| Width (W) | mm | 960 | 1600 |
| Length (L) | mm | 1650 | 1650 |
| Height (H) (one deck) | mm | 350 | 350 |
| Inside width of oven | mm | 600 | 1200 |
| Inside length of oven | mm | 900 | 900 |
| Insıde height of oven | mm | 180/210 | 180/210 |

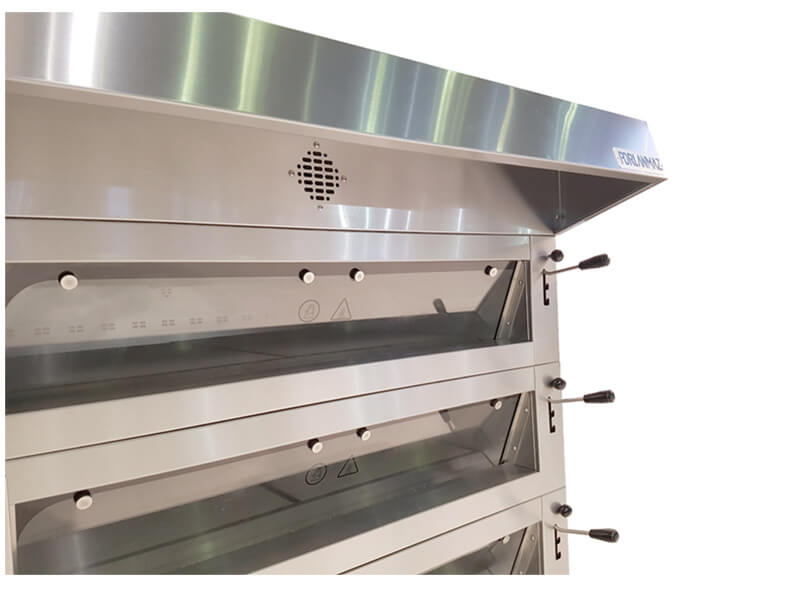

| Height of chimney hood(H2) | mm | 250 | 250 |
| Height of fermentation cabinet(H1) | mm | 650 | 650 |
| Number of tray in each deck (dimensions of trays) | pcs (cm) | 2 (35x45) 2 (40x60) 1 (60x80) |
6 (35x45) 4 (40x60) 2 (60x80) |
| Electrical power | kW | 5+3 | 10+3 |
| Electrical power for fermentation cabinet | kW | 3,5 | 3,5 |

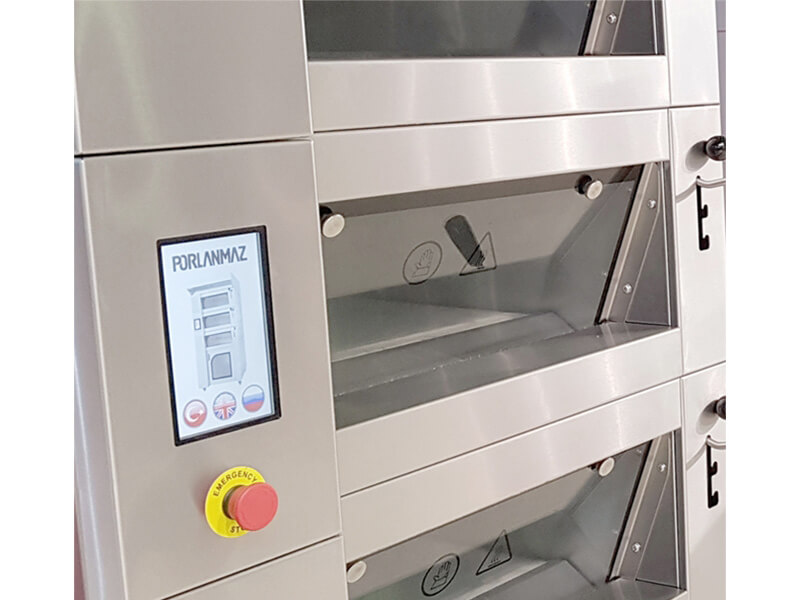

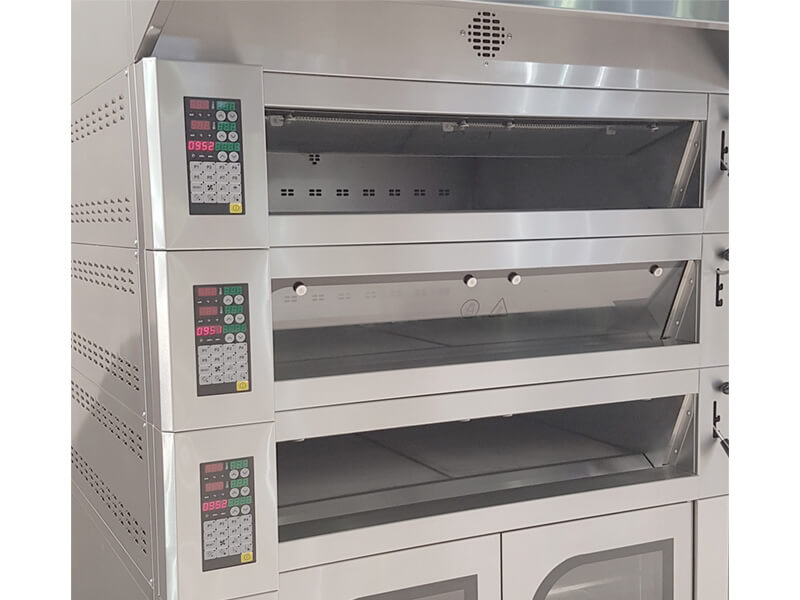

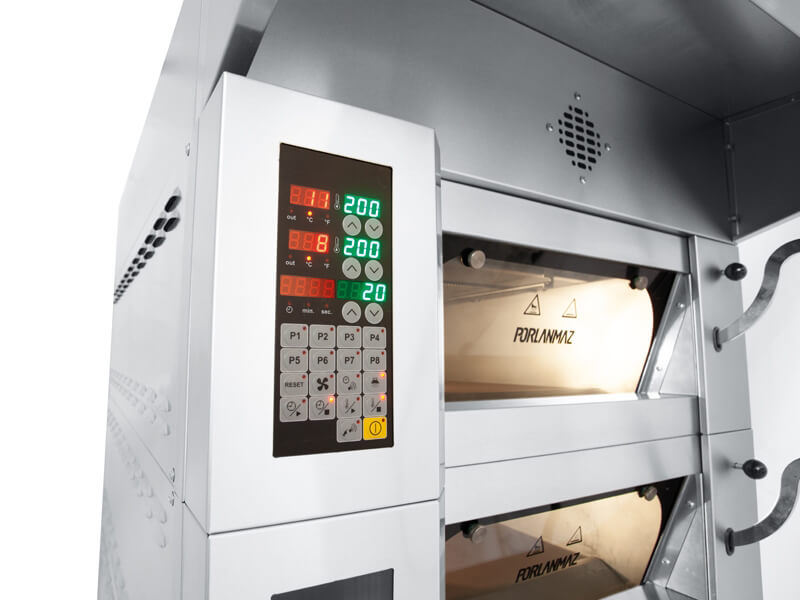

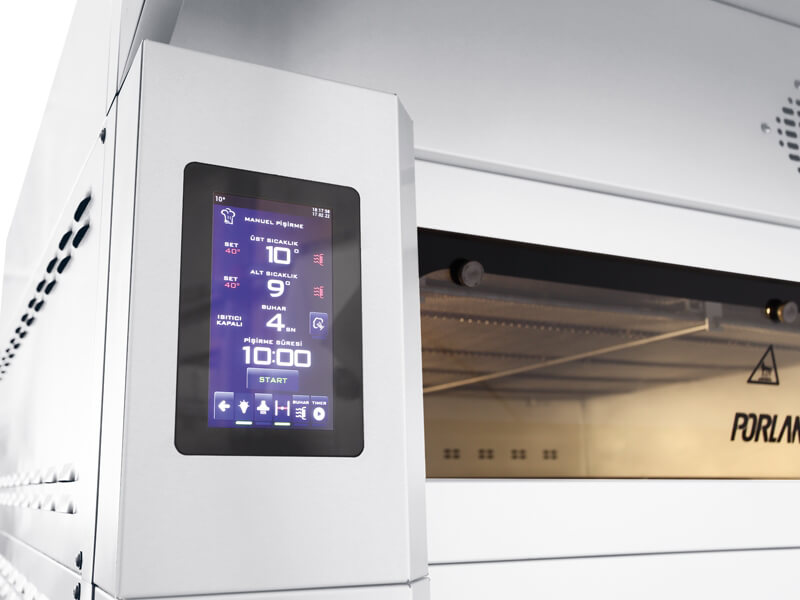

| Control system | Analogue, Digital or Touch Screen | ||
| Weight of oven (1 deck) | kg | 162 | 270 |
| Weight of fermentation cabinet | kg | 70 | 150 |
| Number of trays in fermentation cabinet | pcs | 8 | 16 |
Manufacturer reserves the right to change specifications without prior notice.
